TecknoSIM VX

High Fidelity Simulators and Motion Platform Simulators

TecknoSIM VX is full-scale advanced simulator specifically designed for advanced training or research purposes. This full-scale simulator has all the features you would find in a real vehicle/equipment. There are two versions of the simulator; a fully equipped mockup version and a cabin version. The simulator is mounted on an integrated motion platform that makes it close to reality. Advanced instructor station controls the simulator and assists in smooth training and operations.

HIGH FIDELITY SIMULATORS AND MOTION PLATFORM SIMULATORS
OPERATING CABIN

Operating Cabin

Modular Type: In this version, the operating cabin replicates the driving seat of the vehicle or equipment based on a motion platform. The simulator is equipped with OEM controls that are placed in the exact location as in the real vehicle/ equipment. The instrument cluster is provided on a LED display. Driving cabin is upgradable and can accommodate multiple features. All TecknoSIM simulators support the left hand and right-hand driving style. The hardware is adapted to suit the gear transmission style and controls on request.

Cabin Type: The operator cab replicates the driving seat of the vehicle or equipment based on a motion platform. The simulator cab consists of a backroof as seen in the actual vehicle or equipment. The Simulator is equipped with OEM controls that are placed in ergonomically correct locations. Instrument cluster is provided on a LED display fitted on the dashboard. Driving cabin is upgradable and can accommodate multiple features. All TecknoSIM simulators support the left hand and right-hand driving style. The hardware is adapted to suit the gear transmission style and controls on request.

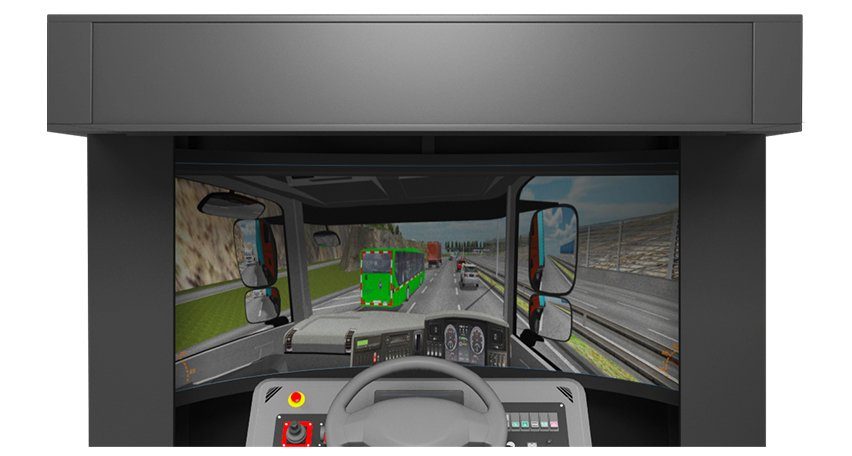

Display System

TecknoSIM VX includes a seamless curved screen display through multiple high definition projectors. This type of a display set up offers greater immersion, increased image realism and a better viewing experience. This results in increased training engagement and learning retention. TecknoSIM simulator comes with the option of VR display as well.

Display System

Instructor Station

The advance instructor station makes it possible for the instructor to use the simulator for detailed training and analysis. The station allows the instructor to:

  • Add and manage the database of trainees
  • Add and manage the database of instructors
  • Set up and modify training scenarios
  • Change the weather and environmental conditions in a running session
  • View the current state of trainees controls and instrument cluster in a running session
  • Inject faults in a running session
  • Record and replay of saved sessions
  • Managing performance evaluation reports of current and past sessions
  • Calibration and diagnostics of simulators

Integrated Motion Platform

TecknoSIM VX simulators are based on a 3DOF Integrated Motion platform. The motion platform used for the simulator is based on electric actuator technology and is very low on maintenance. The motion platform provides realistic simulation effects of braking, suspension, collision, turning and acceleration. The force feedback system on the steering wheel provides realistic sensory motions of tyres and terrain interaction.

Convertible Kits

The TecknoSIM VX simulator range is designed to easily accommodate multiple equipments/vehicles on the same simulation platform. The convertible kits allow the users to maximize their return on investment by training by utilizing the same platform to train on multiple simulators at the same time.

Monitoring Station

Monitoring station is a separate screen that allows the instructor to view and monitor driver’s performance in real time. Monitoring screen is placed along with the instructor screen and allows the instructor to administer the simulator on one screen while viewing the running session on the other screen. Client has the option to upgrade their instructor station with the monitoring screen.

GEAR TRANSMISSION

Gear Transmission

Each simulator is offered with an option of automatic and manual gear transmission. For heavy vehicles or special equipments, the gear transmissions are adapted to suit the type of machine. Multiple gear transmissions are offered with convertible kits.

Support

All TecknoSIM Simulators carry an international warranty for 1 year. Regular software updates are available in this version.
